Statotherm SSTC-TAL 9592/P

Features

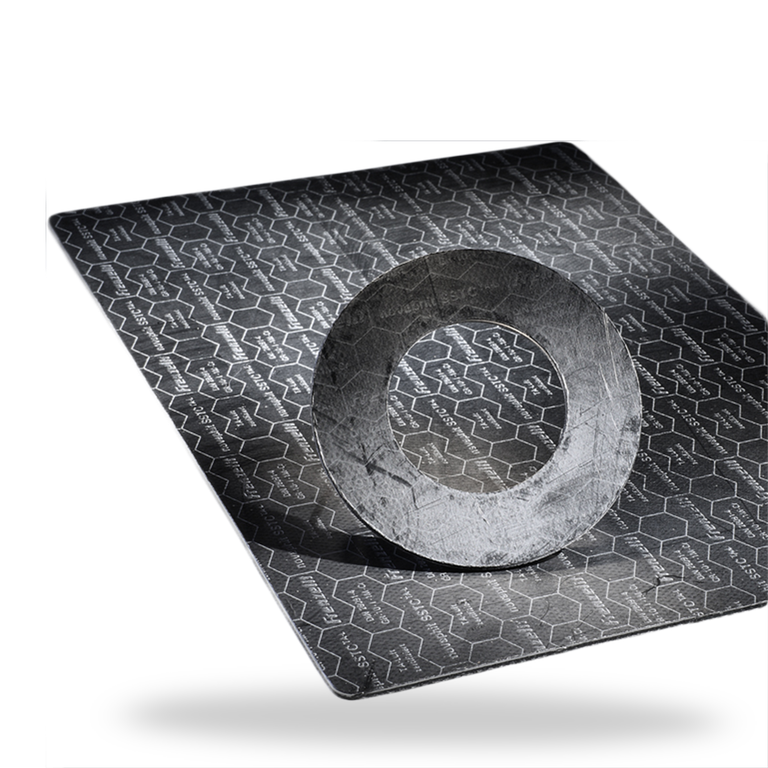

Statotherm SSTC-TAL 9592 is a high-performance seal material made from flexible, expanded graphite (purity > 99 %). It is impregnated with a threedimensional expanded metal insert made from chromiumnickel steel (1.4404, AISI 316 (L)). The combination of performance-optimised impregnation and expanded metal insert to create a seal allows it to be used universally as defined in the TA Luft. Equates to the Frenzelit Novaphit SSTC-TA-L.

Advantages

  • Optimum distribution of the surface pressure
  • High seal tightness to reduce emissions

Operating range

Pressure: p = 200 bar
Temperature
  • Continuous operation:
    t = -200 °C ... +500 °C
  • Steam: tmax+550°C
Recommended surface roughness: RZ = 12.5 ... 50 μm

Chemical resistance: pH = 0 … 14
Resistant to almost all organic and inorganic acids, alkalis, oils and solvents. Not suitable for use in highly oxidizing media or in elementary fluorine, bromine, sulfur trioxide or ozone (O3) > 150 °C.

Standards and approvals

  • TA Luft
  • BAM (upon request)
  • DVGW
  • Fire safe (API607 /BS6755)
  • Blow-out resistance (VDI 2200, class C)
  • VP 401

Variants

9592/P (sheets)
9592/R (rings and cuts)
9592/RIG (rings with inner eyelet)
9592/RA (frames)
9592/S (segments)

Notes

For safe operation, always use seals that are dry and undamaged.

Forms of supply

  • Sheets:
    1.000 x 1.000 mm
    1,0 / 1,6 / 2,0 / 3,0 mm thickness
  • Rings and molded parts:
    Standard dimensions as per DIN EN 1514-1 or ASME B16.21
