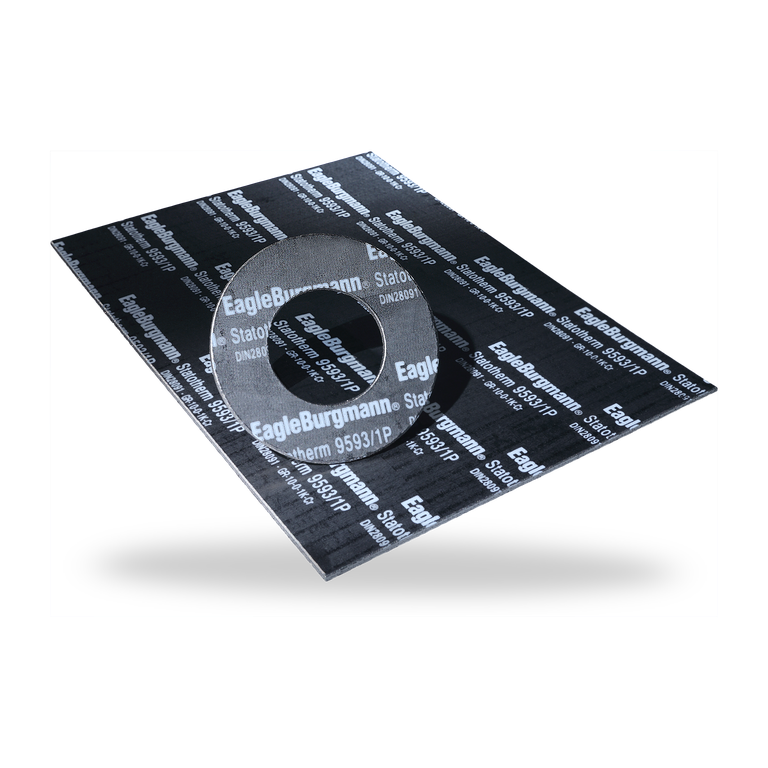

Statotherm 1P 9593/1P is a gasket sheet made from flexible, expanded graphite foils (purity > 98 %) which can be combined with a stainless steel sheet insert (material: 316 (L), 0.05 mm thick). Statotherm 1P 9593/1P is a gasket with a particularly adaptable graphite overlay that allows it to be used with low surface pressures and in fragile flanged connections.


  • No embrittlement
  • Outstanding oxidation resistance
  • Can be used in fragile flanged connections

Operating range

Pressure: p = 40 bar
  • Continuous operation:
    t = -200 °C ... +400 °C
  • Steam: tmax=+550°C
  • Inert environment:
    tmax = +550 °C
Recommended surface roughness: RZ = 12.5 ... 50 μm

Chemical resistance: pH = 0 … 14
Resistant to almost all organic and inorganic acids, alkalis, oils and solvents. Not suitable for use in highly oxidizing media or in elementary fluorine, bromine, sulfur trioxide or ozone (O3) > 150 °C..


9593/1P (sheets)
9593/1R (rings and cuts)
9593/1RIG (rings with inner eyelet)
9593/1RA (frames)
9593/1S (segments)


For safe operation, always use seals that are dry and undamaged.

Forms of supply

  • Sheets:
    1.000 x 1.000 mm and 1.500 x 1.500 mm
    1,0 /1,5 /2,0 / 3,0 / 4,0 mm thickness
  • Rings and molded parts:
    Standard dimensions as per DIN EN 1514-1 or ASME B16.21
