BuraTAL T3 9650/T3

BuraTAL T3 9650/T3
Request product

BuraTAL T3 9650/T3

Features

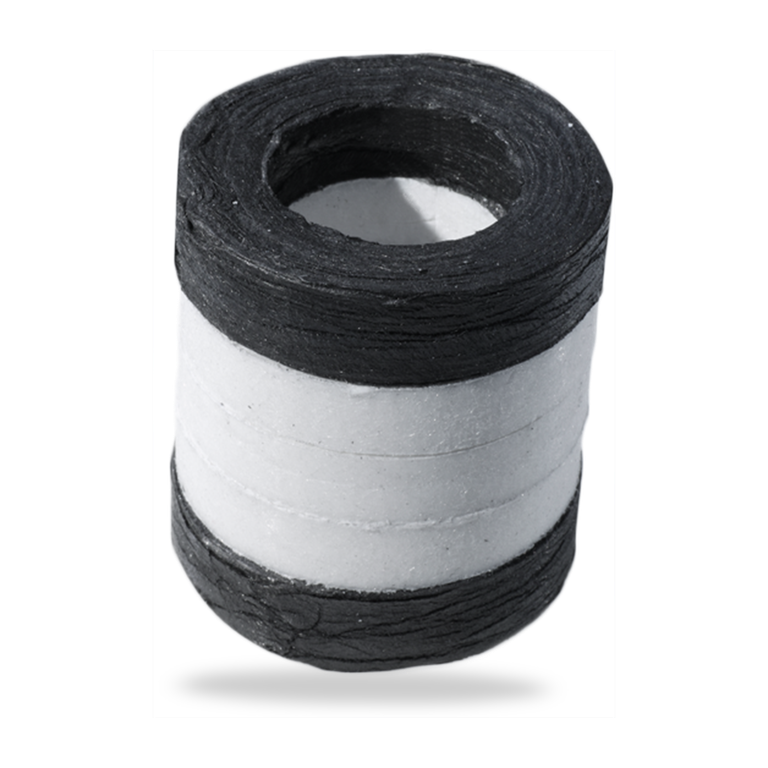

The BuraTAL T3 9650/T3 an innovative new packing set made from high quality, impregnated non-wovens. It consists of the following components:
  • Carbon fiber non-woven end rings with a special PTFE/ graphite compound.
  • Aramid non-woven sealing rings in the middle impregnated with PTFE to ensure very high cross-sectional stability. The packing set is especially suitable where high gas sealing performance with low friction is required.

Advantages

  • Dimensionally stable
  • High gas tightness
  • Minimal friction coefficients

Operating range

Valves Pressure: p = max. 250 bar
for TA-Luft:
  • without live-loading system 30 bar
  • with live-loading system 63 bar
Sliding velocity: vg = 2 m/s

Temperature
  • Continuous operation:
    t = -50 °C … +250 °C
    • Chemical resistance: pH = 1 … 13
    Resistant to almost all media. Not suitable for use in highly oxidizing media such as hot sulfuric and nitric acid.

Standards and approvals

  • TA Luft

Variants

9650/T3B (with live-loading System)
9650/T3K (with wire reinforcement)
9650/T3KB (with wire reinforcement and live-loading)

Forms of supply

  • Customized packing sets made from endless or split precompressed rings
  • Made to order
