API Plan 65A

API Plan 65A

Atmospheric leakage collection and alarm system for condensing leakage. Failure of the seal will be detected by an excessive flow rate into the leakage collection system.

A  From mechanical seal
B  To liquid collection system
C  Valve (locked open)
D  Flow control orifice

Seal chamber details

2  To liquid collection system
3  Flush (F)
4  Quench (Q)
5  Drain (D)
6  Seal chamber

Example seal: EagleBurgmann LL9UC single pusher mechanical seal.

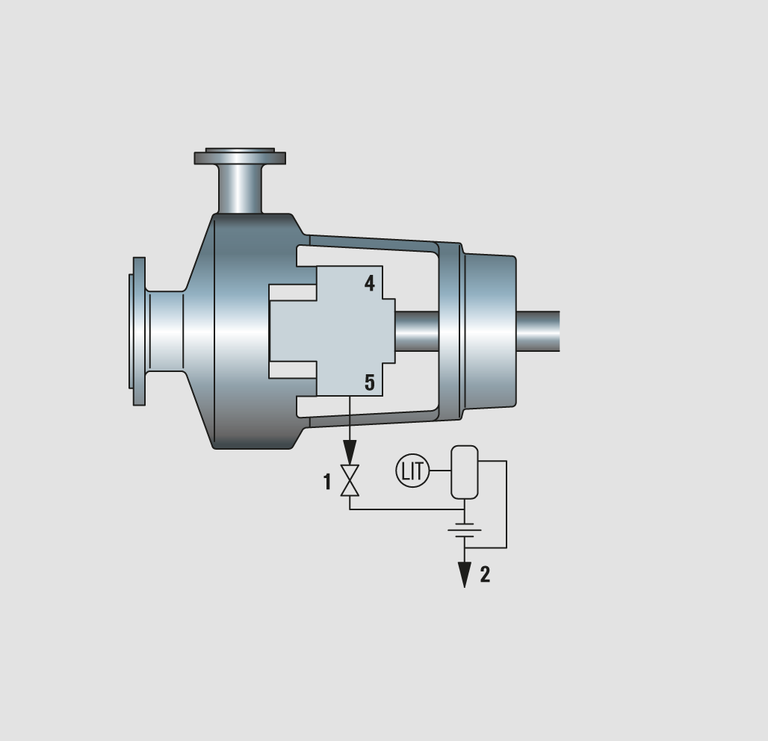

P&ID according to API


1  Valve (locked open)
2  To liquid collection system
4  Quench (Q)
5  Drain (D)

LIT  Level transmitter with local indicator


  • Uses the Plan 61 drain connection.
  • Collects the leakage from a single seal in a leakage collection reservoir.
  • Is equipped with a level transmitter with a high level alarm.
  • This plan is applied with a floating or segmented bushing or a similar containment device.


  • For single seals with expected condensing leakage.
  • Generally for horizontal pumps.

Remarks, checkpoints

  • A 5 mm (0.20") orifice in the vertical piping leg should be installed.
  • It must be ensured that the drain connection on the gland is at the bottom-most position (6 o’clock).
  • The valve below the gland (1) should always be kept open during pump operation.


Pump media characteristics

  • Condensing, medium temperature fluids.

Location, function

  • Atmospheric side
  • Leakage collection, detection and alarm



2CW-CW*, 3CW-FB*, 3CW-BB*, 3CW-FF*

* Remark: The configurations listed for each individual piping plan are to be understood as recommendations including possible utilizations which may also be applied.


API 682 4th Edition
