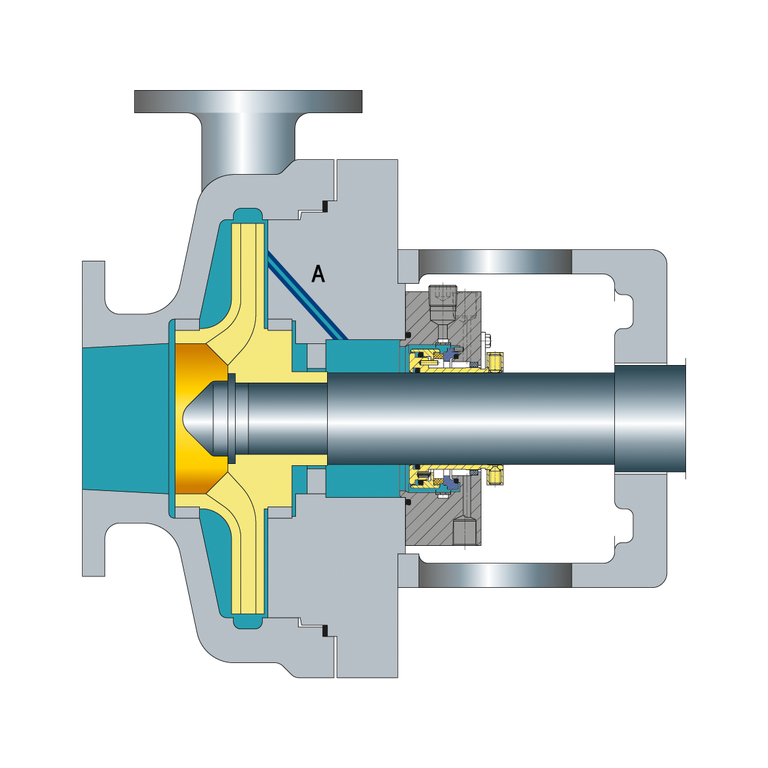

API Plan 01

API Plan 01

Integral (internal) recirculation from the pump discharge to the seal chamber.

A  Internal circulation


API Plan 02

API Plan 02

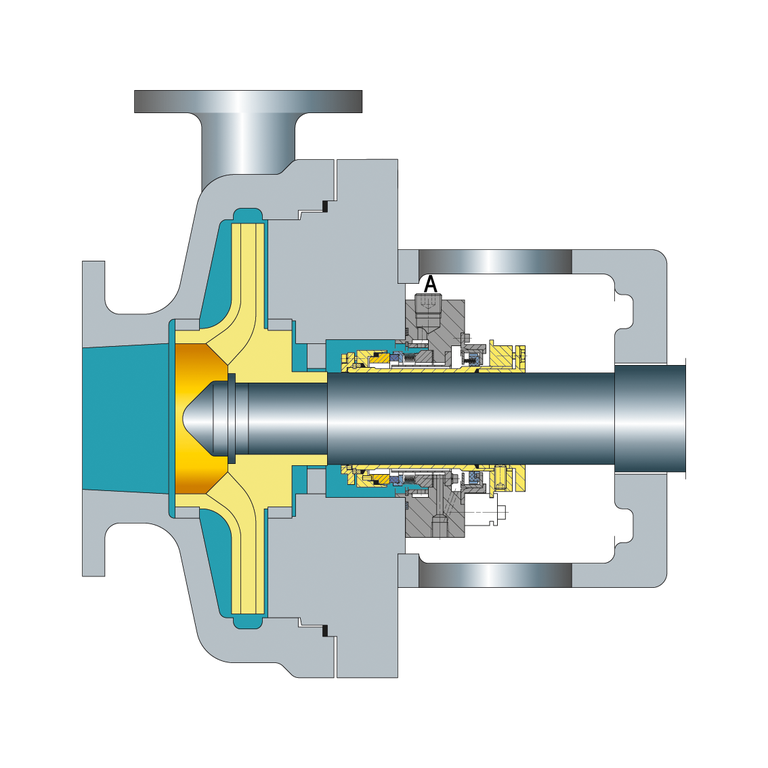

Dead-ended seal chamber with no recirculation of flushed fluid. Flush connections plugged.

A  Flush connection plugged


API Plan 03

API Plan 03

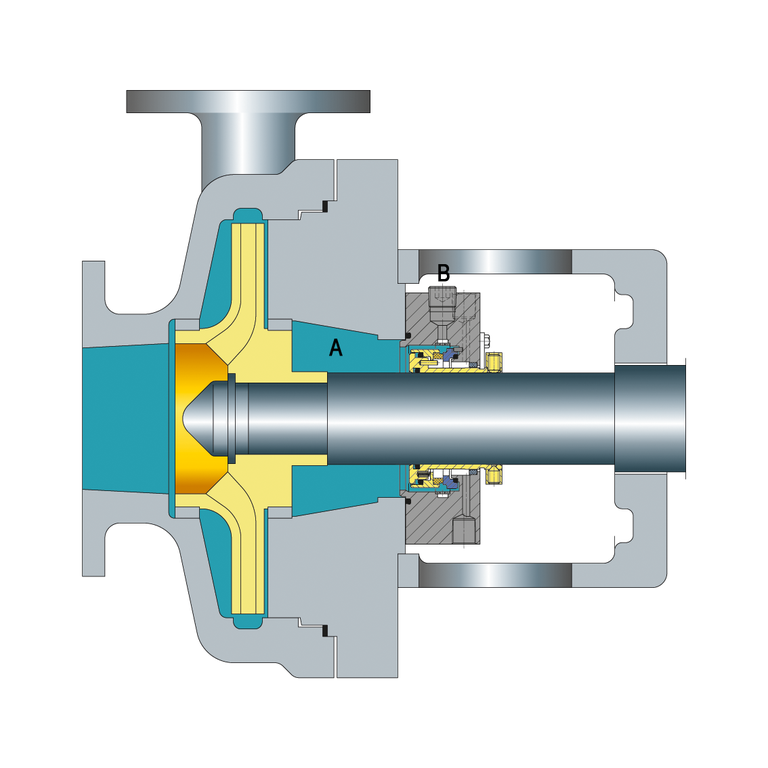

Circulation between the seal chamber and the pump created by the design of the seal chamber. Flush connections plugged.

A  Taper bore design of seal chamber
B  Flush connection plugged

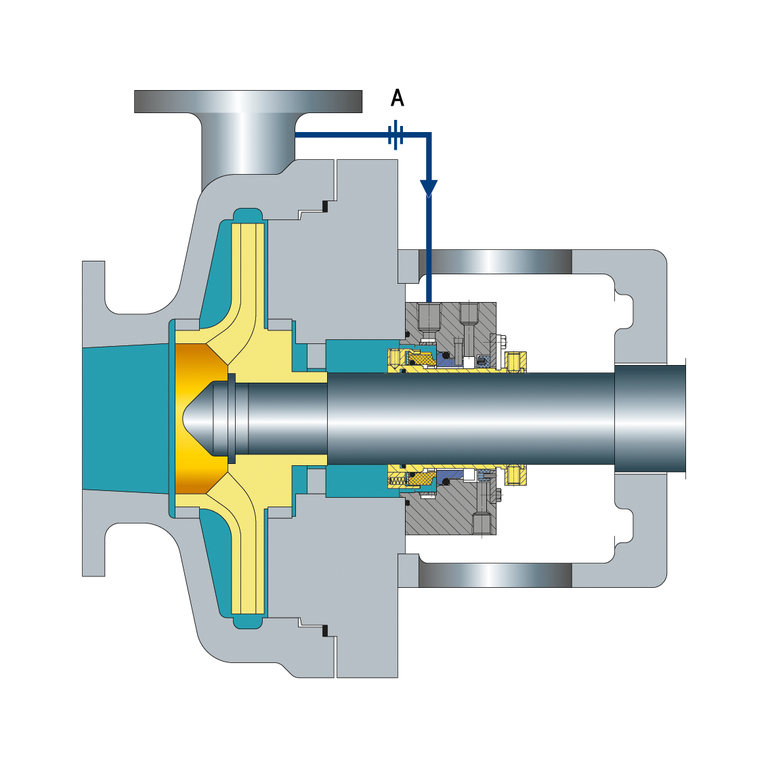

API Plan 11

API Plan 11

Recirculation from the pump discharge through a flow control orifice into the seal chamber.

A  Flow control


API Plan 12

API Plan 12

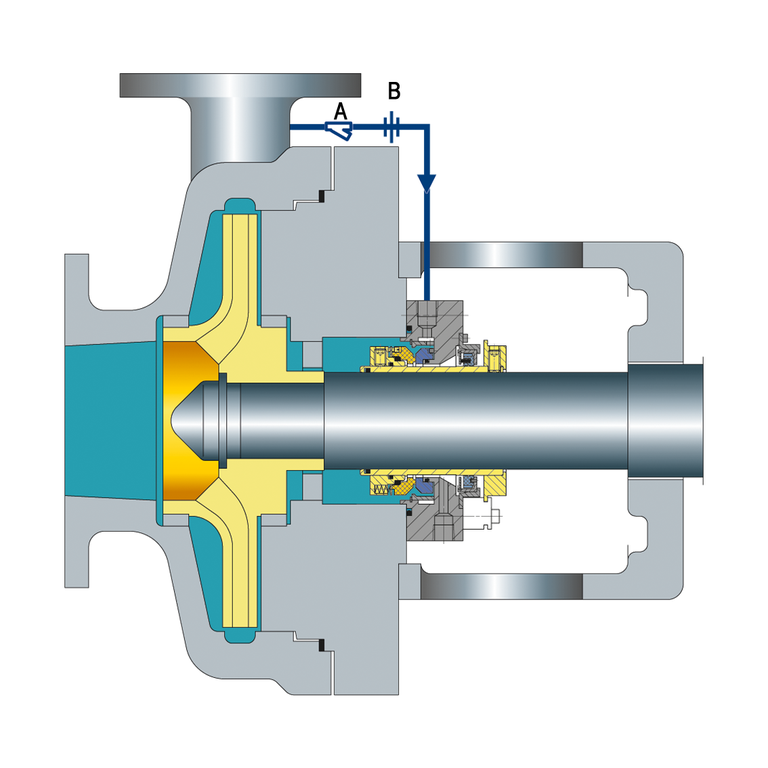

Recirculation from the pump discharge through a strainer and a flow control orifice into the seal chamber.

A  Strainer
B  Flow control orifice

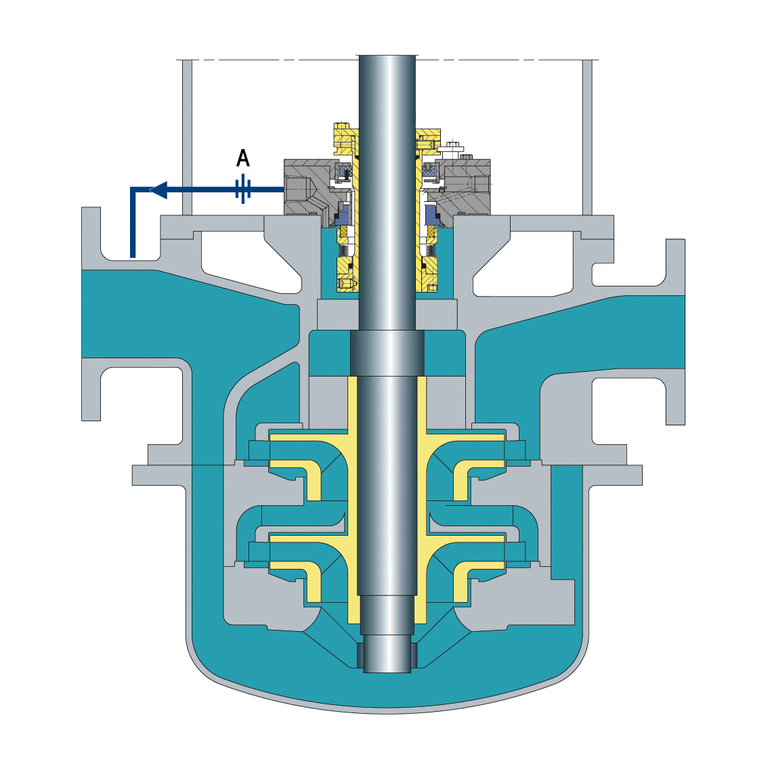

API Plan 13

API Plan 13

Recirculation from the seal chamber through a flow control orifice and back to the pump suction or pump suction piping.

A  Flow control orifice

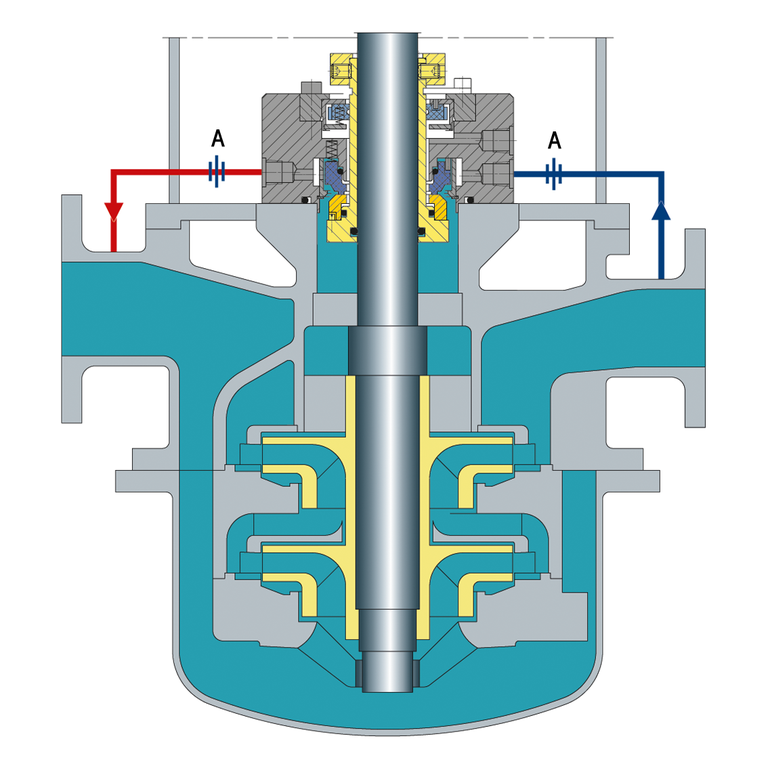

API Plan 14

API Plan 14

Recirculation from pump discharge through a flow control orifice to the seal and simultaneously from the seal chamber through a flow control orifice to pump suction.

A  Flow control orifice


API Plan 21

API Plan 21

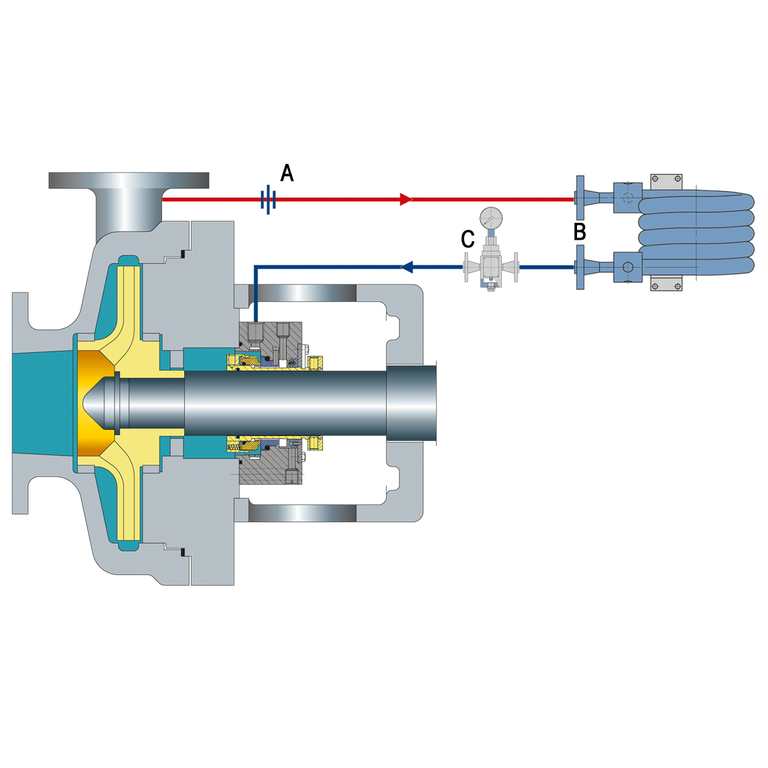

Recirculation from pump discharge through a flow control orifice and cooler into the seal chamber.

A  Flow control orifice
B  Cooler
C  Temperature indicator


API Plan 22

API Plan 22

Recirculation from pump discharge through a strainer, a flow control orifice and a cooler into the seal chamber.

A  Strainer
B  Flow control orifice
C  Cooler
D  Temperature indicator
